FADER SLOT: Crossfader Only |
_______________________________________________ |
|  |
| ADAPTER BOARD (included): Adapter (14) |
| USE 8 PIN NOISE FILTER CABLE (included): More info |
| ADAPTER EXTERNAL POWER: Please see Innofader Pro2 Instructions
|
| OPTIMAL CURVE DIAL SETTING: 12:00 |
| |
_______________________________________________ |
Installation Notes: |
| Requires hand soldering modification to connect mixer power. Please see mixer specific instructions for more detail. |
Installation Detailed Description: |
Use the same instructions for the Vestax VMC-002 wiring. The only difference is the power cable wiring. For the power cable wiring:
INNOFADER PRO
1) Ignore Step D. It is not needed because there is no power rerouting through this board.
2) For step C, do not disconnect any mixer power cables. Simply cut one end of the 2 wire cable with the smaller connector included with the Innofader Pro kit and hand solder it to H13. The black wire goes to the left pin (connects to large ground trace) and the red wire goes to the right pin
INNOFADER PRO2
1) Leave J45 disconnected. J45 is the 2 pin connector between J43 and J44. It is not needed.
2) For J43, plug one end of a 2 wire cable into J43. For the other end, clip the connector and hand solder it to H13. The black wire goes to the left pin (connects to large ground trace) and the red wire goes to the right pin
The VMC instructions are here.

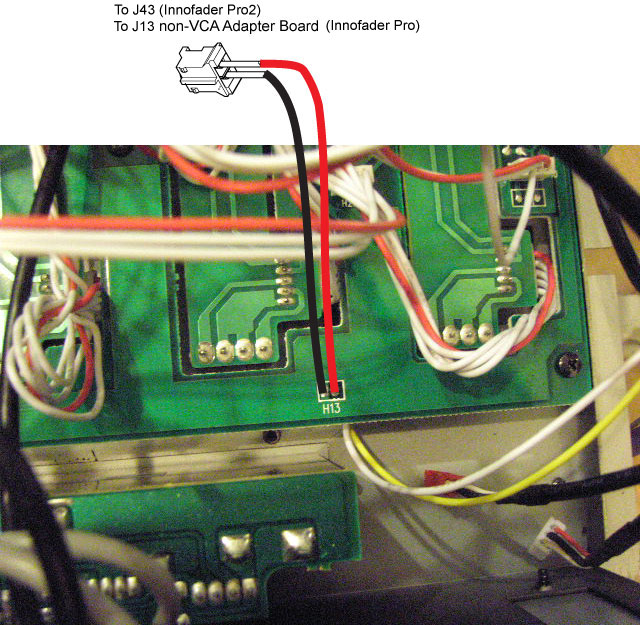

Please see below for the picture showing the connection to H13 on the PMC-280.
Note the Innofader Pro2 has significantly less noise than the Innofader Pro. If you are still using the Innofader Pro and run into issues with audible noise getting into the output, please check the following forum post.
|
