FADER SLOT: Crossfader Only |
_______________________________________________ |
|  |
| ADAPTER CABLE: 3 pin small. Cable can be forward or reversed. |
| OPTIMAL CURVE DIAL SETTING: 12:00 |
| |
_______________________________________________ |
|  |
| SUGGESTED HEIGHT ADJUSTMENT: Lower by 5.0mm.
More info |
| ADAPTER BOARD (included): Adapter (4) |
| OPTIMAL CURVE DIAL SETTING: 12:00 |
| |
_______________________________________________ |
|  |
| ADAPTER CABLE: 3 pin small. Cable can be forward or reversed. |
| |
_______________________________________________ |
Installation Notes: |
| Requires adapter plate included with the Innofader kit |
| Multiple Innofader models will work for this mixer. The preferred model is listed first based on the best performance / cost tradeoff. |
| Use 1.2mm raised cap to prevent the knob from scraping against the faceplate (full bodied Innofader models only) |
| Also fits the original Innofader Pro. Please follow the instructions for VCA hookup |
Installation Detailed Description: |
The Innofader PNP, mini Innofader PNP P, and Innofader Pro2 all work on this mixer.
mini Innofader PNP P: easiest to install, lightweight.

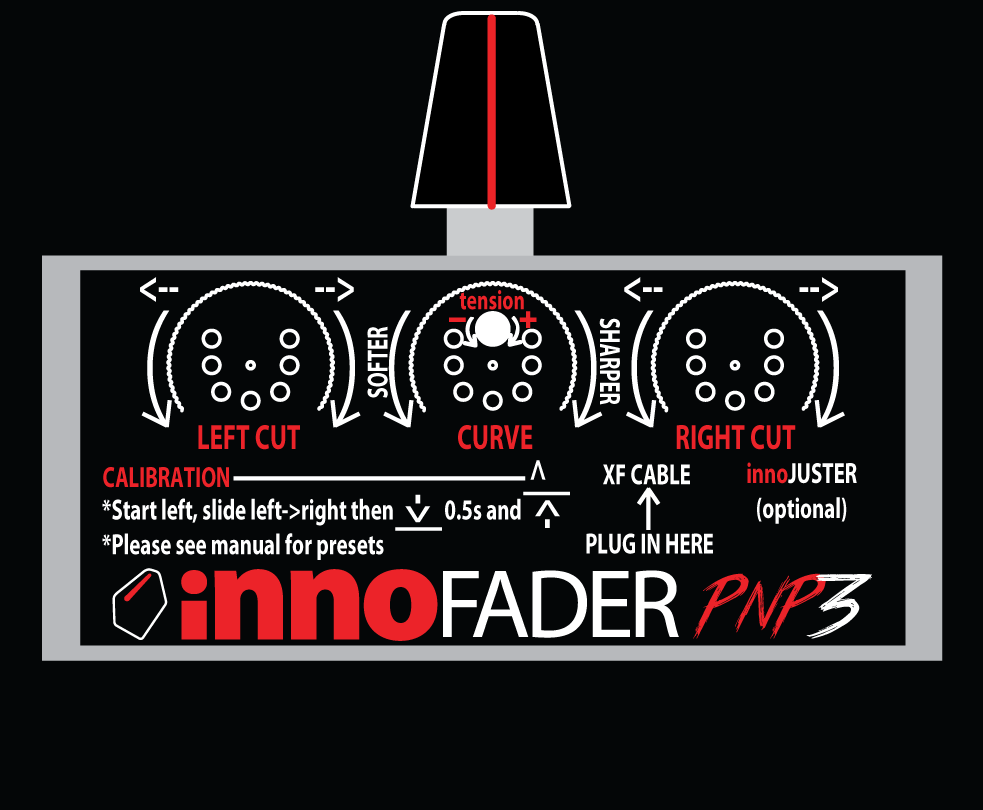

Innofader PNP: full bodied, sturdy, but need to bend a plastic protective sheet out of the way to fit it. Plus if you have a DJM 900 Nexus, please do the following wire modification.

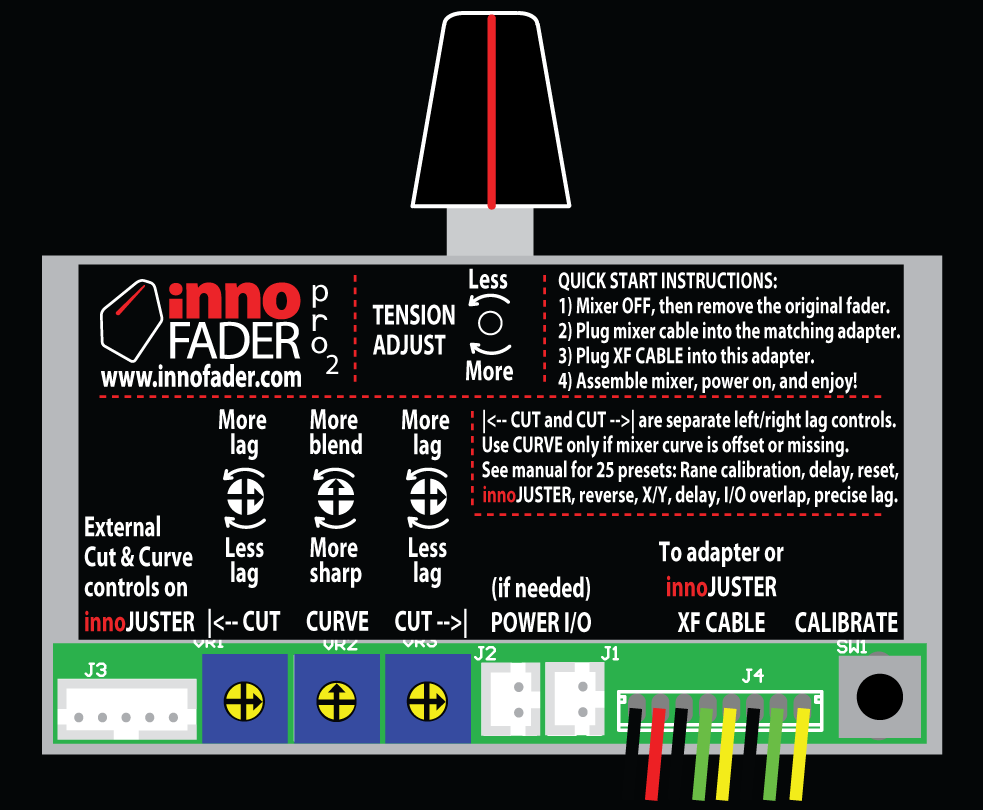

Innofader Pro2: also need to bend back the protective plastic sheet, but since it doesn't have adapter boards, the installation is easier than before.
NOTE: many customers have damaged their Pioneer DJM mixer due to improper handling. If you have ANY doubts, please get the job done by a qualified service technician such as Virtual Sound Technology. Doing so will save you lots of money and headaches.
Here are the original DJM-800 Installation Instructions. Note these instructions are with the original Innofader and DJM-800 adapter.
|
