Innofader - connectivity

Instructions for Behringer DDM-4000

***PURCHASE AN INNOFADER:***

FADER SLOT: Crossfader Only

_______________________________________________

COMPATIBLE INNOFADER #1:
Innofader PNP3

SUGGESTED HEIGHT ADJUSTMENT: Lower by 1.5mm. More info
ADAPTER CABLE: 3 pin small. Cable can be forward or reversed.
OPTIMAL CURVE DIAL SETTING: 12:00


_______________________________________________

COMPATIBLE INNOFADER #2:
Innofader Pro2

SUGGESTED HEIGHT ADJUSTMENT: Lower by 6.5mm. More info
ADAPTER CABLE: 3 pin small. Cable can be forward or reversed.
OPTIMAL CURVE DIAL SETTING: 12:00


_______________________________________________

COMPATIBLE INNOFADER #3:

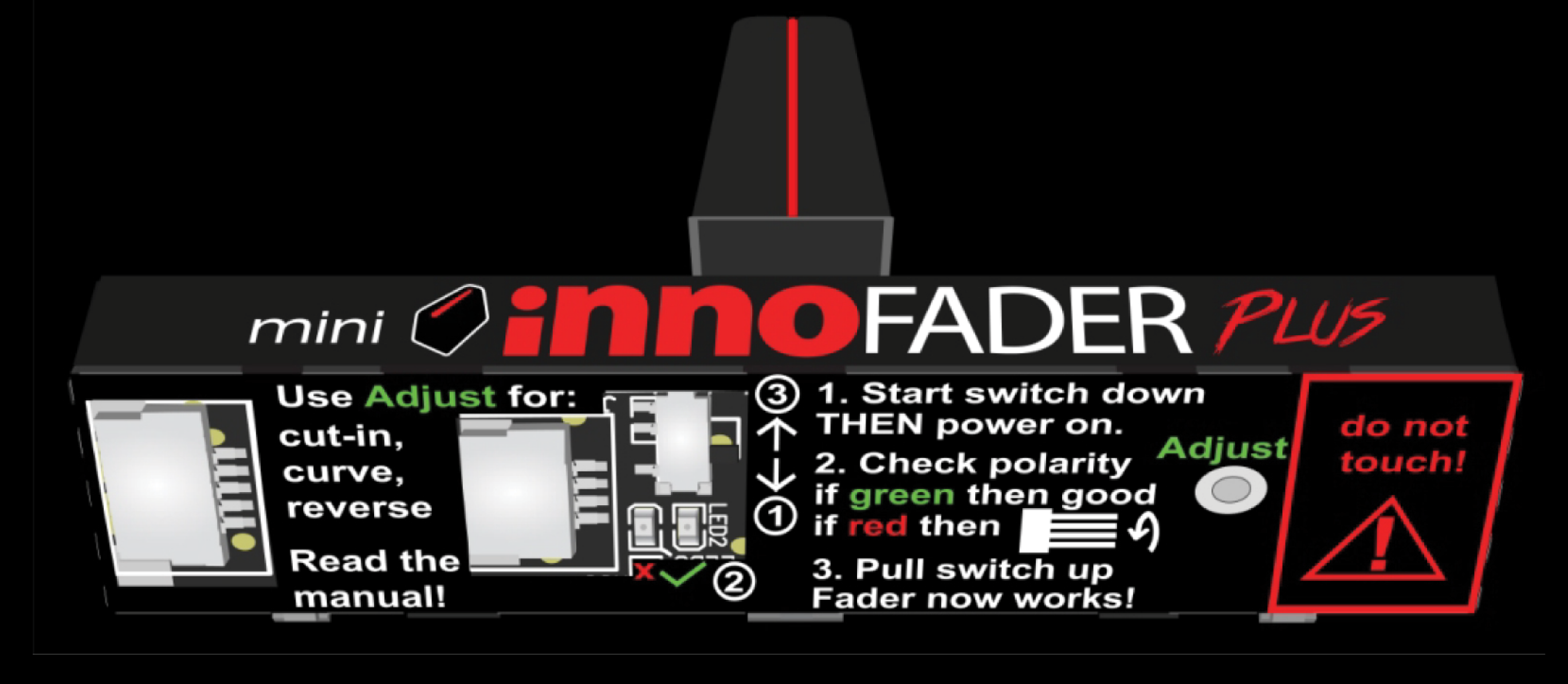

mini Innofader Plus

SUGGESTED HEIGHT ADJUSTMENT: Lower by 1.5mm. More info
ADAPTER BOARD (included): Adapter (4)


_______________________________________________

Installation Notes:

Multiple Innofader models will work for this mixer. The preferred model is listed first based on the best performance / cost tradeoff.
Also fits the original Innofader Pro. Please follow the instructions for VCA hookup
